Applications of Single Row Cylindrical Roller Bearings

Single row cylindrical roller bearings are essential components in various industrial applications. Their unique design allows them to handle heavy radial loads and accommodate axial displacement. In this article, we'll explore the diverse applications of these bearings, their advantages, and why they are a popular choice in many industries.

Understanding Cylindrical Roller Bearings

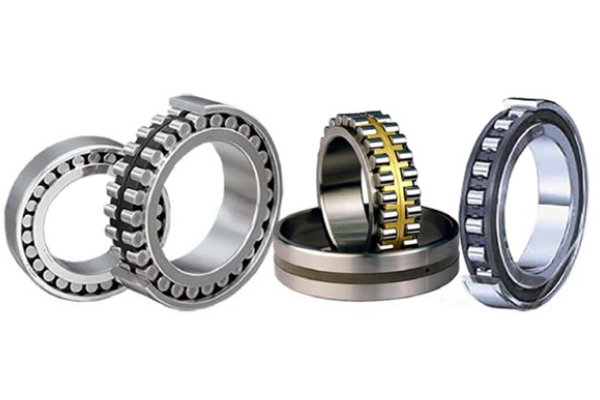

Cylindrical roller bearings are a type of rolling-element bearing that uses cylinders instead of balls. This design offers a larger contact area with the raceway, providing higher load capacity and greater shock absorption. The "single row" designation refers to the arrangement of one row of rollers, which is ideal for managing radial loads.

The Design of Single Row Cylindrical Roller Bearings

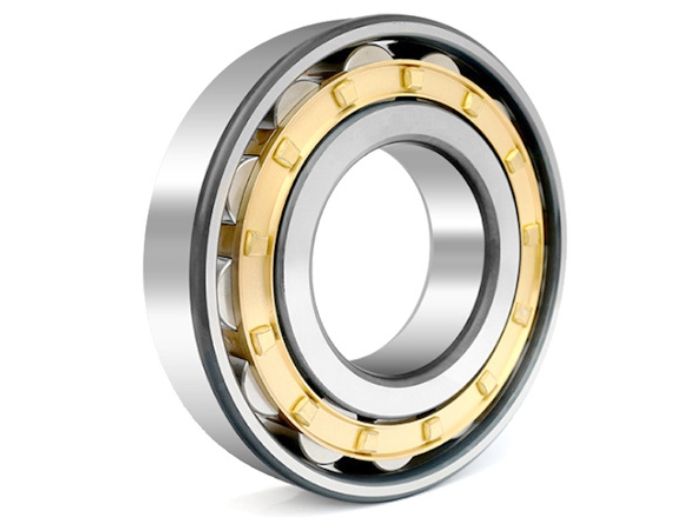

Single row cylindrical roller bearings consist of an inner and outer ring, a cage, and a row of cylindrical rollers. The cage keeps the rollers evenly spaced and prevents them from contacting each other, reducing friction and wear. These bearings come in several designs, such as NU, NJ, NUP, and N, each offering specific performance features.

Key Advantages of Single Row Cylindrical Roller Bearings

Single row cylindrical roller bearings offer several advantages, making them a preferred choice in industrial applications:

High Load Capacity

The larger contact area of the rollers allows these bearings to support higher radial loads than ball bearings. This makes them suitable for heavy-duty applications like construction equipment and machinery.

Ability to Accommodate Axial Displacement

Some designs, such as NU and N types, permit axial displacement between the inner and outer rings. This feature is beneficial in applications where thermal expansion and contraction might occur.

Low Friction and Heat Generation

The design of these bearings minimizes friction and reduces heat generation, leading to improved efficiency and longevity. This is crucial in high-speed applications, such as in motors and pumps.

Industrial Applications of Single Row Cylindrical Roller Bearings

Single row cylindrical roller bearings are found in various industries due to their robustness and versatility.

Automotive Industry

In the automotive sector, these bearings are used in gearboxes and differentials. Their ability to handle high radial loads and accommodate misalignment makes them ideal for these applications. The reduced friction also contributes to fuel efficiency and longevity of the vehicle components.

Electric Motors

Electric motors frequently employ single row cylindrical roller bearings because of their low friction and high-speed capabilities. They ensure smooth operation and enhance the motor's efficiency, making them indispensable in industrial and household appliances.

Construction Machinery

Heavy-duty construction equipment, such as cranes and earthmovers, relies on these bearings for their high load-bearing capacity. The ability to manage both radial and axial loads ensures the machinery can perform efficiently even in harsh conditions.

Wind Turbines

Wind turbines require bearings that can handle both high radial loads and axial displacement due to varying wind conditions. Single row cylindrical roller bearings are often used in the main shafts and gearboxes of wind turbines, contributing to their reliability and efficiency.

Considerations for Using Single Row Cylindrical Roller Bearings

While these bearings offer numerous advantages, there are a few considerations to keep in mind when selecting them for an application.

Load Requirements

It's essential to assess the load requirements of your application. While single row cylindrical roller bearings handle high radial loads well, they are not designed for significant axial loads. Understanding the load dynamics will help in choosing the appropriate bearing type.

Speed and Temperature

Consider the operational speed and temperature of your application. Although these bearings are efficient at high speeds, extreme temperatures can affect their performance. Proper lubrication and maintenance are crucial to ensure longevity and reliability.

Misalignment Tolerance

Single row cylindrical roller bearings have limited misalignment tolerance. In applications where misalignment is a concern, it's important to select a bearing design that can accommodate it or use complementary components to manage misalignment.

Maintenance and Care for Optimal Performance

To get the best performance from single row cylindrical roller bearings, regular maintenance and care are essential.

Lubrication

Proper lubrication reduces friction and prevents wear and tear. Use the recommended lubricant for your specific application and ensure regular re-lubrication to maintain optimal performance.

Inspection

Regular inspections can help identify wear, misalignment, or lubrication issues early. Addressing these problems promptly can prevent unexpected failures and extend the lifespan of the bearings.

Replacement

Even with regular maintenance, bearings will eventually wear out. It's important to replace them at the first signs of significant wear or damage to avoid compromising the performance of the entire system.

Conclusion

Single row cylindrical roller bearings are versatile and robust components used across various industries. Their ability to handle high radial loads and accommodate axial displacement makes them ideal for demanding applications. By understanding their advantages and limitations, you can ensure optimal performance and longevity in your machinery and equipment.

With the right maintenance and application knowledge, single row cylindrical roller bearings can significantly enhance the efficiency and reliability of your industrial operations.
